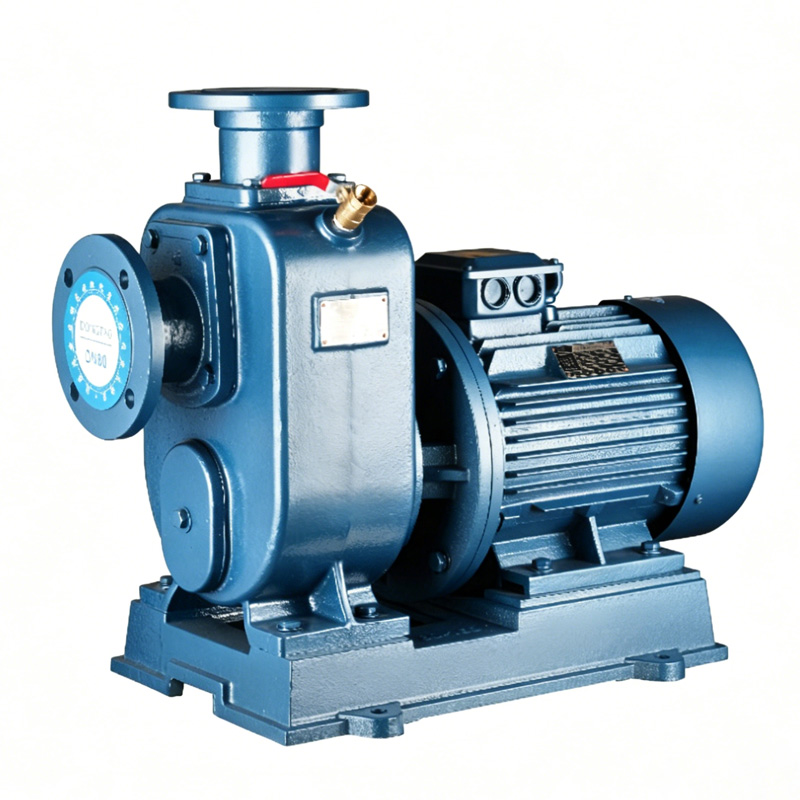

Key Features & Advantages
- Stainless Steel Shaft: The pump shaft is constructed from corrosion-resistant stainless steel, enhancing durability and reliability, especially when handling mildly corrosive liquids or in humid environments.
- Y2 National Standard Motor: Powered by high-efficiency, reliable Y2 series three-phase motors that comply with national standards, ensuring stable performance and energy savings.
- High-Temperature Resistant Bearings: Equipped with bearings specifically rated for high-temperature operation. This design allows the pump to handle hot liquids (up to specified limits) and withstand the thermal stresses of continuous duty, extending component life.
- High-Temperature Mechanical Seals: Incorporates mechanical seals designed with high-temperature-resistant materials. This is critical for maintaining a reliable seal when pumping hot water or other heated fluids, preventing leakage and premature seal failure.
Model Number Instruction
Understanding the model code provides key specifications:
- BZ: Self-Priming Centrifugal Pump
- First two digits (e.g., 40, 50, 65): Inlet/Outlet Nominal Diameter (mm)
- First Number after “BZ” (e.g., 10, 15, 20): Rated Flow (m³/h)
- Second Number after “BZ” (e.g., 20, 25, 15): Rated Head (m)
- The final number in some model codes indicates power (kW), but in the BZ series table, power is listed as a separate column.
Example: 40BZ10-20= Self-priming centrifugal pump with 40mm ports, 10 m³/h flow, 20m head.
Technical Specifications
| No. | Model | Voltage (V) | Rated Flow (m³/h) | Rated Head (m) | Self-Priming Height (m) | Speed (RPM) | Power (kW) | Inlet Dia. (mm) |
|---|---|---|---|---|---|---|---|---|
| 1 | 40BZ10-20 | 380 | 10 | 20 | 6 | 2900 | 1.5 | 40 |
| 2 | 50BZ15-25 | 380 | 15 | 25 | 6 | 2900 | 2.2 | 50 |
| 3 | 65BZ20-15 | 380 | 20 | 15 | 6 | 2900 | 2.2 | 65 |
| 4 | 50BZ10-32 | 380 | 10 | 32 | 6 | 2900 | 3 | 50 |
| 5 | 65BZ25-20 | 380 | 25 | 20 | 7 | 2900 | 3 | 65 |
| 6 | 50BZ14-35 | 380 | 14 | 35 | 7 | 2900 | 4 | 50 |
| 7 | 65BZ25-30 | 380 | 25 | 30 | 7 | 2900 | 4 | 65 |
| 8 | 50BZ15-45 | 380 | 15 | 45 | 6 | 2900 | 5.5 | 50 |
| 9 | 65BZ25-40 | 380 | 25 | 40 | 6 | 2900 | 5.5 | 65 |
| 10 | 80BZ50-30 | 380 | 50 | 30 | 6 | 2900 | 7.5 | 80 |
| 11 | 100BZ100-20 | 380 | 100 | 20 | 6 | 2900 | 7.5 | 100 |
| 12 | 80BZ31-50 | 380 | 31 | 50 | 6 | 2900 | 11 | 80 |
| 13 | 100BZ100-25 | 380 | 100 | 25 | 6 | 2900 | 11 | 100 |
| 14 | 100BZ100-32 | 380 | 100 | 32 | 6 | 2900 | 15 | 100 |
| 15 | 80BZ50-50 | 380 | 50 | 50 | 6 | 2900 | 15 | 80 |
| 16 | 80BZ50-60 | 380 | 50 | 60 | (Not specified) | 2900 | 18.5 | 80 |
| 17 | 100BZ100-50 | 380 | 100 | 50 | 6 | 2900 | 22 | 100 |
Applications
- Industrial water supply and circulation systems.
- Agricultural irrigation and drainage.
- Municipal water transfer and boosting.
- Pressure boosting in buildings and HVAC systems.
- Transfer of hot water or other heated process fluids (compatible with temperature rating).
- General water transfer from tanks, rivers, or reservoirs.
Why Choose DONGTAO BZ Self-Priming Centrifugal Pump Series?
- Installation Convenience: The self-priming feature allows for flexible installation above the liquid source, reducing installation complexity and cost.
- Built for Demanding Service: Stainless steel shaft, high-temperature bearings, and seals make this series suitable for tougher applications involving heat or mild corrosion.
- Reliable & Efficient: Y2 standard motors and robust hydraulic design ensure efficient and dependable operation for continuous duty cycles.
- Wide Performance Range: With models from 1.5kW to 22kW covering various flows and heads, a suitable pump can be found for numerous applications.
Contact Us for Selection Support
To determine the optimal BZ model for your specific flow, head, liquid type, and temperature requirements, please contact our technical sales team with your application details. We will provide expert selection advice and a competitive quotation.
