Key Features & Advantages (Intelligent Control System)
The GJ series distinguishes itself with its built-in electronic intelligence, offering multiple layers of protection and automated control:
- Intelligent Dual Control: The system can automatically start and stop the pump based on real-time pressure or flow signals, maintaining consistent water pressure without manual intervention. It intelligently manages the pump’s operation cycle.
- Dry-Running Protection: A critical safety feature. The control system detects a lack of water (dry running condition) and will automatically shut off the pump to prevent overheating and seal damage, significantly extending the pump’s life.
- Overheating Protection: Embedded thermal sensors monitor the motor temperature. If an abnormal overheating condition occurs, the system will cut power to prevent motor burnout.
- Anti-Rust Protection: The design and materials used help protect internal components from corrosion, enhancing durability for water supply applications.
- Delay Start Function: Introduces a brief delay upon activation before the pump starts. This prevents rapid cycling (short cycling) if there are minor pressure fluctuations, reducing wear on the motor and contacts.
- No Frequent Start-Stop: The control logic is optimized to minimize unnecessary on/off cycles, promoting smoother operation and longer component lifespan.
Model Number Instruction
Understanding the model code reveals the pump’s key performance characteristics:
- GJ: Intelligent Self-Priming Pump
- First two digits (e.g., 60, 70, 80, 90): Impeller Specification (related to outer diameter and performance curve).
- Last digits (e.g., 200, 300, 400): Motor Power (Watt).
- AS: Suffix denotes “Stainless Steel” model variant.
Example: GJ60-200= Intelligent self-priming pump with 60-series impeller, 200W (0.2kW) power.
Technical Specifications

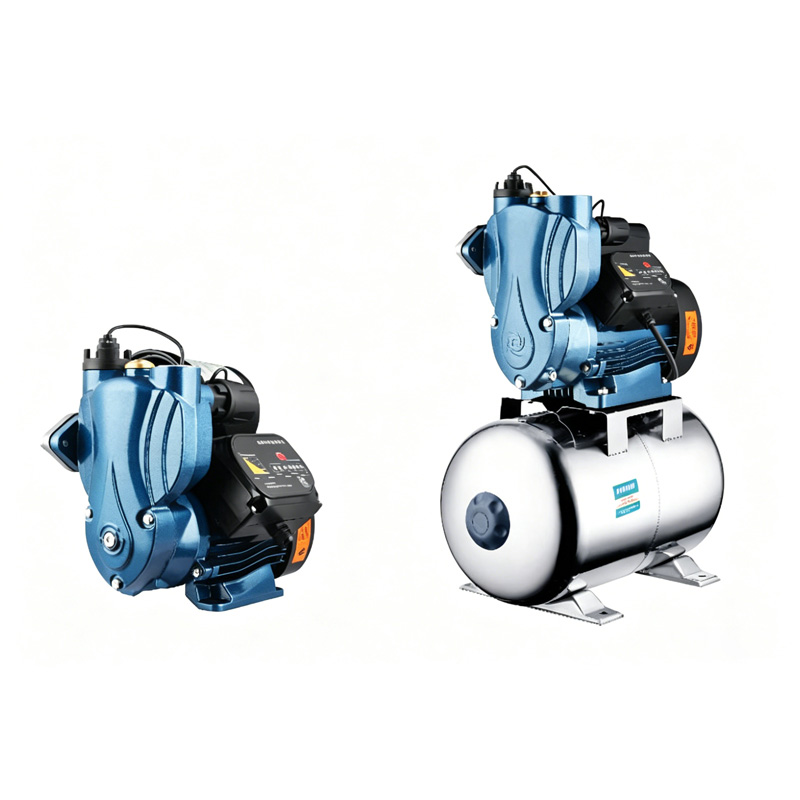

Standard GJ Series Models
| No. | Model | Voltage (V) | Max. Flow (m³/h) | Max. Head (m) | Rated Flow (m³/h) | Rated Head (m) | Power (kW) | Pipe Dia. (mm) |
|---|---|---|---|---|---|---|---|---|
| 1 | GJ60-200 | 220 | 2 | 25 | 1 | 12 | 0.2 | 25 |
| 2 | GJ60-300 | 220 | 2 | 30 | 1 | 13.5 | 0.3 | 25 |
| 3 | GJ60-400 | 220 | 2 | 35 | 1 | 15 | 0.4 | 25 |
| 4 | GJ70-600 | 220 | 3 | 40 | 1.5 | 22 | 0.6 | 25 |
| 5 | GJ80-800 | 220 | 3.5 | 45 | 1.5 | 28 | 0.8 | 25 |
| 6 | GJ90-1100 | 220 | 6 | 50 | 2.5 | 30 | 1.1 | 25 |
| 7 | GJ90-1500 | 220 | 6.5 | 60 | 3 | 35 | 1.5 | 25 |
| 8 | GJ90-1100 (Large Tank) | 220 | 6 | 50 | 2.5 | 30 | 1.1 | 25 |
| 9 | GJ90-1500 (Large Tank) | 220 | 6.5 | 60 | 3 | 35 | 1.5 | 25 |

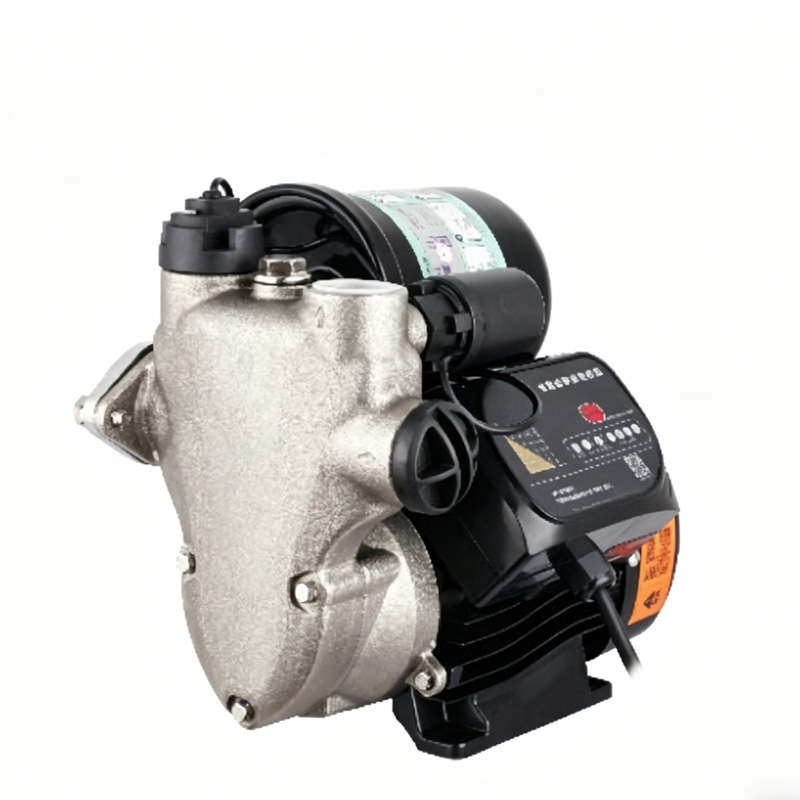

GJ304 Stainless Steel Automatic Intelligent Pump Models
| No. | Model | Voltage (V) | Max. Flow (m³/h) | Max. Head (m) | Rated Flow (m³/h) | Rated Head (m) | Power (kW) | Pipe Dia. (mm) |
|---|---|---|---|---|---|---|---|---|
| 1 | GJ60-200AS | 220 | 2 | 25 | 1 | 12 | 0.2 | 25 |
| 2 | GJ60-300AS | 220 | 2 | 30 | 1 | 13.5 | 0.3 | 25 |
| 3 | GJ60-400AS | 220 | 2 | 35 | 1 | 15 | 0.4 | 25 |
| 4 | GJ70-600AS | 220 | 3 | 40 | 1.5 | 22 | 0.6 | 25 |
| 5 | GJ80-800AS | 220 | 3.5 | 45 | 1.5 | 28 | 0.8 | 25 |
Applications
- Automatic household water supply and pressure boosting for villas, apartments, and residential buildings.
- Domestic hot water circulation systems.
- Small-scale irrigation and garden water supply.
- Water transfer and pressurization in shops, restaurants, and small commercial establishments.
- As a replacement for traditional, non-automatic water pressure pumps.
Why Choose DONGTAO GJ Intelligent Self-Priming Pump Series?
- Worry-Free Automation: The intelligent controller handles start/stop, dry-run protection, and overload protection, making operation simple and safe.
- Equipment Protection: Multiple built-in safeguards prevent damage from dry running, overheating, and frequent cycling, reducing maintenance costs and downtime.
- Energy Efficient: Operates only when needed, saving energy compared to constantly running pumps.
- Convenient Installation: Self-priming capability allows for flexible installation (not strictly required below water level) and easy setup.
- Choice of Materials: Available in standard and GJ304 stainless steel (AS series) versions for applications requiring higher corrosion resistance.
